Bare Conductor
Round Copper Wire
DIA : 0.50mm ~ 5.00mm
Property : Soft or Hard
Round Aluminium
DIA : 0.50mm ~ 5.00mm
Property : Soft or Hard
Flat Copper Wire
Width : 2.00mm ~ 18.00mm
Thickness : 0.40 mm ~ 6.00mm
Radio (H:W) 1:1 ~ 10:1.
Flat Aluminium
Width : 2.00mm ~ 30.00 mm
Thickness : 1.00 mm ~ 7.00 mm
Radio : (H:W) 1 : 1 ~ 10 : 1
Strand Soft Wire
Property：Soft
Dimension：30 mm2 ~ 500 mm2
Paper Insulated Conductor
Paper Insulated Copper
Width : 2.00mm ~ 30.00mm
Thickness : 1.00 mm ~ 7.00mm
Radio : (H:W) 1 : 1 ~ 10 : 1
Insulated material : Kraft Paper, TUP, 22HCC
Paper Insulated Aluminium
Width : 2.0mm ~ 30mm
Thickness : 1.00 mm ~ 7.00mm
Radio : (H:W) 1 : 1 ~ 10 : 1
Insulated material : Kraft Paper, TUP, 22HCC

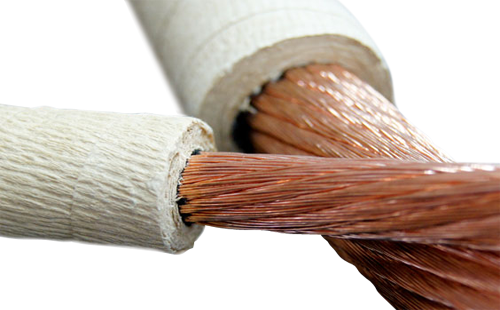

Strand Soft Wire
Property：Soft
Dimension：30 mm2 ~ 500 mm2
Insulated material: Crepe Paper
Enamel Wire

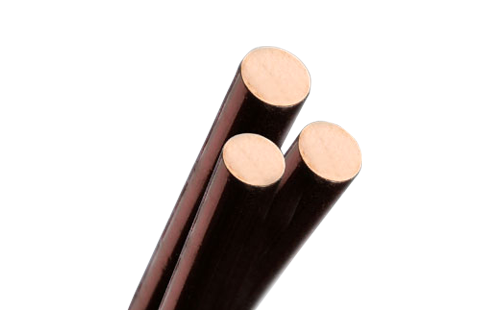

Enamel Copper
Type : PVF / PEW / PEI / EIAI / PAI
DIA : 0.50mm ~ 5.50mm
Coating Thickness：Grade1 & Grade2 & Grade3
Standard：IEC-60317- 0- 2, IEC- 60317- 0-1, IEC-60317-26
Enamel Flat Copper
Type : PVF
Width 5.0mm ~ 16.00mm
Thickness : 1.00 mm ~ 5.00mm
Coating Thickness：Grade1 & Grade2 & Grade3
Standard：IEC-60317- 0- 2, IEC- 60317- 0-1, IEC-60317-26
Enamel Aluminium
Type : PVF / PEW / PEI / EIAI / PAI
DIA. 1.00mm ~ 5.50mm
Coating Thickness：Grade1 & Grade2 & Grade3
Standard：IEC-60317- 0- 2, IEC- 60317- 0-1, IEC-60317-26
Continuously transposed conductor
Shortened winding time for transformer
Decreased size and cost of transformer
Reduced electrical losses
Excellent winding ability and simple handling
Improved mechanical strength of winding (Self Bonding)
Thickness: 1.00mm ~ 3.00 mm
Width: 4.00mm ~ 15.00mm
Number of strands: Max 47
